Fab & Fix Blenheim Lever Lever UPVC Multipoint Door Handles – 92mm PZ Sprung 240mm Screw Centres
0 out of 5
£16.73 – £41.63Price range: £16.73 through £41.63

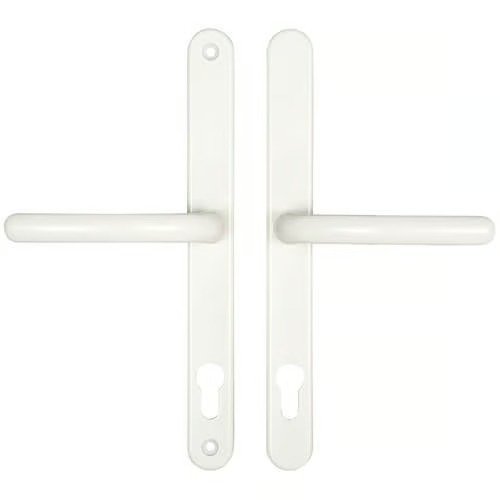

These large Fab & Fix handles from the Blenheim range have sprung 92pz internal & external levers. With a backplate of 270mm x 30mm they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance. The distance between the fixing screws is 240mm with the bottom screw positioned 17mm below the euro profile cut-out. They are supplied as a pair complete with fixings consisting of spindle & 2 colour co-ordinated screws.
- Description
- Additional information
- Reviews (0)
Description

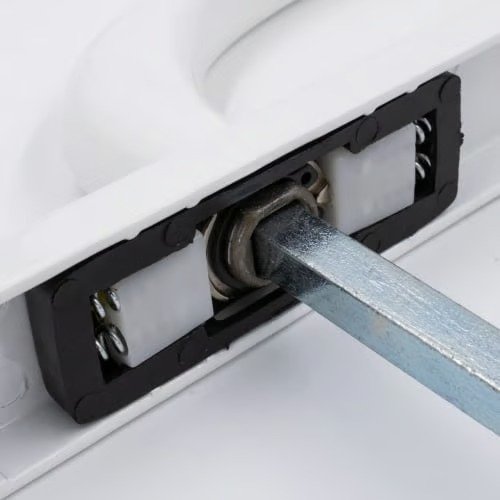

- Sprung

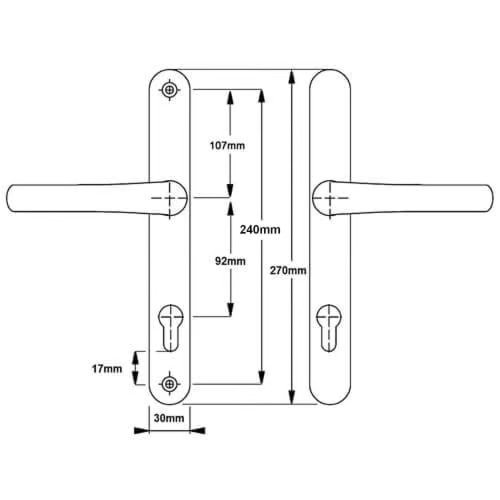

- Length: 270mm
- Width: 30mm
- Centres (PZ): 92mm
- Screw Centres: 240mm
- Base of euro to bottom screw: 17mm
- Top screw to spindle: 107mm
- PAS.24
- Secured by Design

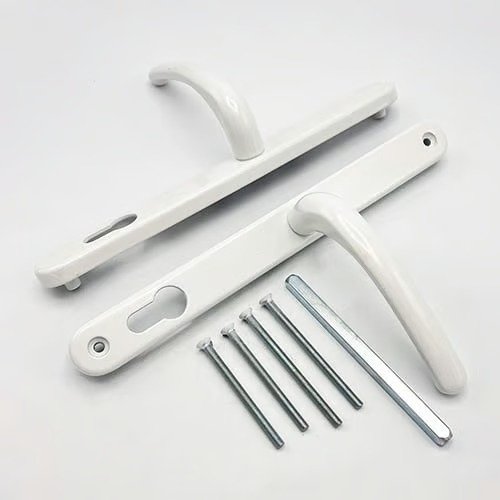

- Supplied with spindle and screws
- Supplied as a pair
- Non-handed
- Polybagged
Product FAQs
Do you stock a cheaper alternative
Yes we stock Hoppe and Easyfit versions which are more cost effective
I need to achieve 3* for insurance purposes how do I do this?
3* can be achieved by fitting a 3* cylinder such as Versa,ABS,Pextra Guard,ATK and Yale Platinum
Additional information
| Colour | White, Black, Silver, Brass, Chrome |
|---|
